KIPP K0318.1AJ SPRING PLUNGER LIGHT SPRING FORCE D=1/4-28 L=20, STEEL, COMP:PIN POM, PU=25 Sale

Original price was: $6.12.Current price is: $2.45.

SKU: US-8765595746509 Categories: , Tag:

Description

KIPP K0318.1AJ SPRING PLUNGER LIGHT SPRING FORCE D=1/4-28 L=20, STEEL, COMP:PIN POM, PU=25
KIPP K0318.1AJ SPRING PLUNGER LIGHT SPRING FORCE D=1/4-28 L=20, STEEL, COMP:PIN POM, PU=25
Spring Plungers pin style, hexagon socket, plastic pin, light end pressure, inch

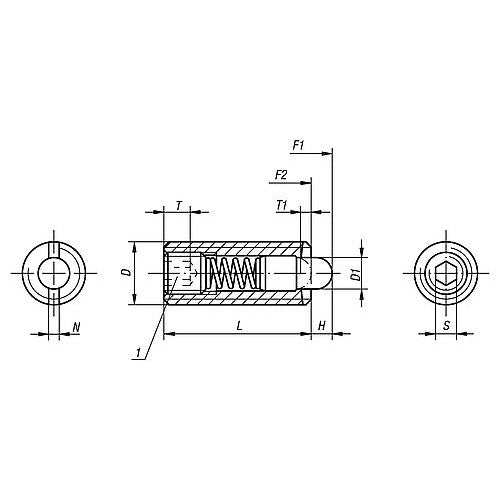

Material: Body steel quality class 5.8. Thrust pin POM. Spring Class D steel wire. Type: Black oxide finish. Part Number Example: K0318.AD Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Steel
Item: Spring Plunger
Packaging Unit: 25
D: 1/4-28
D1: 2.7
Spring Strength: Light
Spring Force Initial Pressure F1 Approx. N: 3
Spring Force Final Pressure F2 Approx. N: 9
H: 2.5
L: 20
N: 1
S: 5/64
T: 2.5
T1: 1
