Sale!

KIPP K0318.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STEEL, COMP:PIN POM, PU=10 Hot on Sale

Original price was: $7.59.Current price is: $3.04.

SKU: US-8765595910349 Categories: , Tag:

Description

KIPP K0318.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STEEL, COMP:PIN POM, PU=10
KIPP K0318.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STEEL, COMP:PIN POM, PU=10
Spring Plungers pin style, hexagon socket, plastic pin, standard end pressure, inch

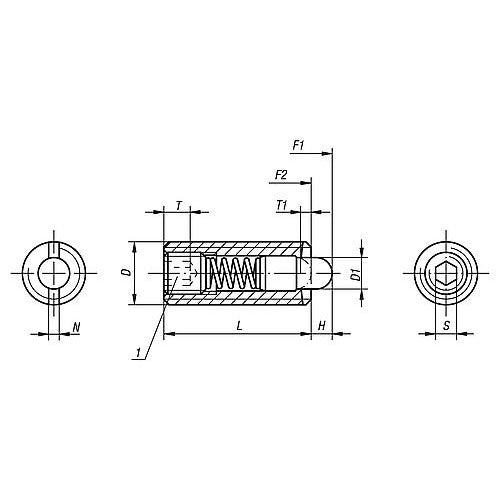

Material: body steel grade 5.8. Thrust pin POM. Spring grade D steel wire. Type: Black oxidized. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Steel
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 10
D: 3/8-16
D1: 4
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 9
Spring Force Final Pressure F2 Approx. N: 35
H: 3
L: 22
N: 1.6
S: 1/8
T: 3.5
T1: 1.4
