KIPP K0322.05 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M05 L=12, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10 Online Hot Sale

Original price was: $6.06.Current price is: $2.42.

SKU: US-8765599711437 Categories: , Tag:

Description

KIPP K0322.05 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M05 L=12, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
KIPP K0322.05 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M05 L=12, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
Spring Plungers with thread lock ball style, slotted, stainless steel, standard end pressure, metric

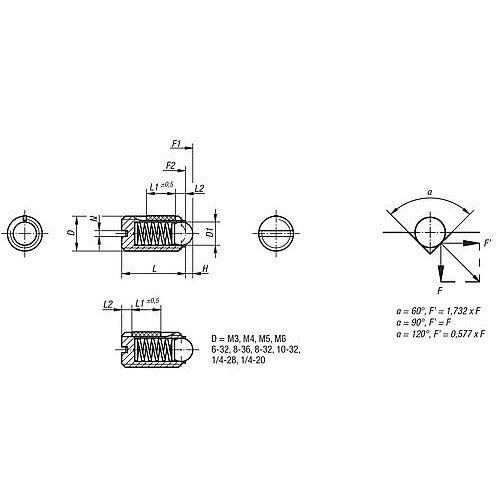

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.08
D: M5
D1: 3
Tightening Torque Approx. Nm: 0.12
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 6
Spring Force Final Pressure F2 Approx. N: 11
H: 0.9
L: 12
L1: 6
N: 0.8
