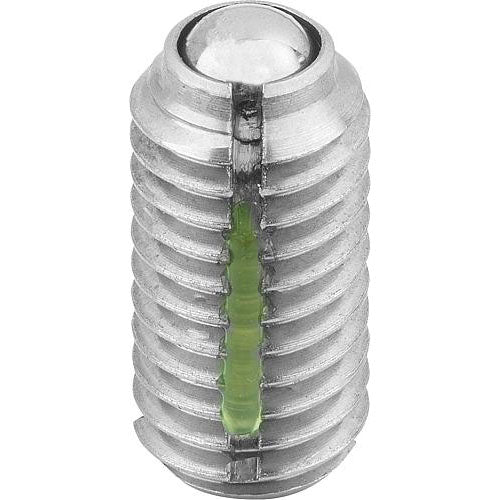

KIPP K0322.08 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STAINLESS STEEL, COMP:BALL STAINLESS STEEL Sale

Original price was: $7.47.Current price is: $2.99.

SKU: US-8765599809741 Categories: , Tag:

Description

KIPP K0322.08 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STAINLESS STEEL, COMP:BALL STAINLESS STEEL
KIPP K0322.08 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STAINLESS STEEL, COMP:BALL STAINLESS STEEL
Spring Plungers with thread lock ball style, slotted, stainless steel, standard end pressure, metric

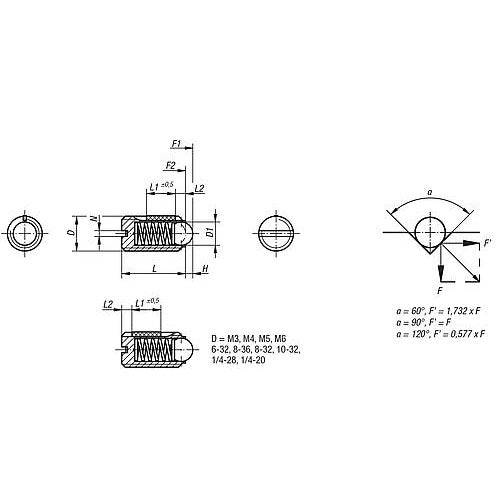

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.37
D: M8
D1: 5
Tightening Torque Approx. Nm: 1.09
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 15
Spring Force Final Pressure F2 Approx. N: 30
H: 1.5
L: 16
L1: 8
N: 1.2
