KIPP K0322.16 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:BALL STAINLESS STEEL Fashion

Original price was: $17.22.Current price is: $6.89.

SKU: US-8765599908045 Categories: , Tag:

Description

KIPP K0322.16 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:BALL STAINLESS STEEL
KIPP K0322.16 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:BALL STAINLESS STEEL
Spring Plungers with thread lock ball style, slotted, stainless steel, standard end pressure, metric

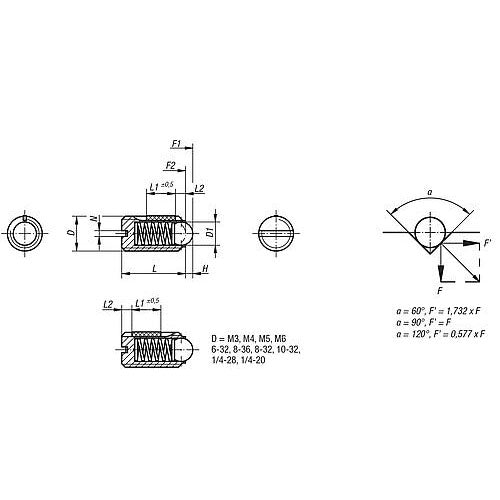

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 2.95
D: M16
D1: 10
Tightening Torque Approx. Nm: 3.95
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 65
Spring Force Final Pressure F2 Approx. N: 125
H: 3.5
L: 24
L1: 14
N: 2.5
