KIPP K0324.1A3 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=5/16-18 L=16, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5 on Sale

Original price was: $7.71.Current price is: $3.08.

SKU: US-8765602005197 Categories: , Tag:

Description

KIPP K0324.1A3 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=5/16-18 L=16, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
KIPP K0324.1A3 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=5/16-18 L=16, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
Spring Plungers with thread lock, pin style, slotted, stainless steel, light end pressure, inch

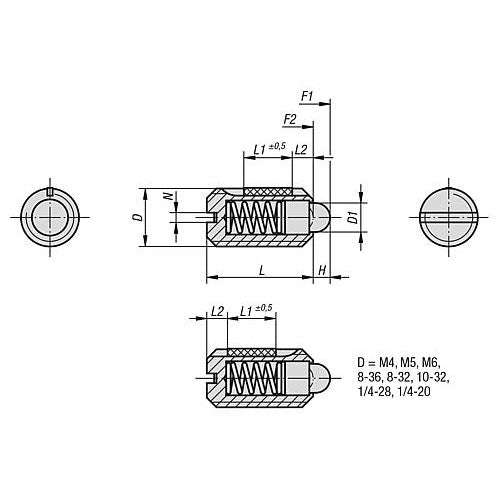

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock Nylon. Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.38
D: 5/16-18
D1: 4
Tightening Torque Approx. Nm: 1.1
Spring Strength: Light
Spring Force Initial Pressure F1 Approx. N: 7
Spring Force Final Pressure F2 Approx. N: 15
H: 2
L: 16
L1: 8
N: 1.2
