KIPP K0324.210 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M10 L=19, STAINLESS STEEL, COMP:PIN STAINLESS on Sale

Original price was: $8.74.Current price is: $3.50.

SKU: US-8765602267341 Categories: , Tag:

Description

KIPP K0324.210 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M10 L=19, STAINLESS STEEL, COMP:PIN STAINLESS
KIPP K0324.210 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M10 L=19, STAINLESS STEEL, COMP:PIN STAINLESS
Spring Plungers with thread lock, pin style, slotted, stainless steel, heavy end pressure, metric
Material: Body in stainless steel 1.4305; pressure pin in stainless steel 1.4034; spring in stainless steel 1.4310 LONG-LOK thread system in nylon Type: Body natural finish, pressure pin hardened L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.62

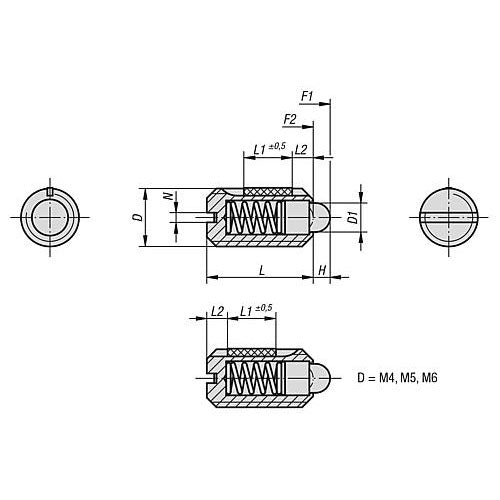

D: M10
D1: 4.5
Tightening Torque Approx. Nm: 1.36
Spring Strength: Intensified
Spring Force Initial Pressure F1 Approx. N: 20
Spring Force Final Pressure F2 Approx. N: 54
H: 2.5
L: 19
L1: 9
N: 1.6
