Sale!

KIPP K0324.216 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:PIN STAINLESS on Sale

Original price was: $19.05.Current price is: $7.62.

SKU: US-8765602398413 Categories: , Tag:

Description

KIPP K0324.216 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:PIN STAINLESS
KIPP K0324.216 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:PIN STAINLESS

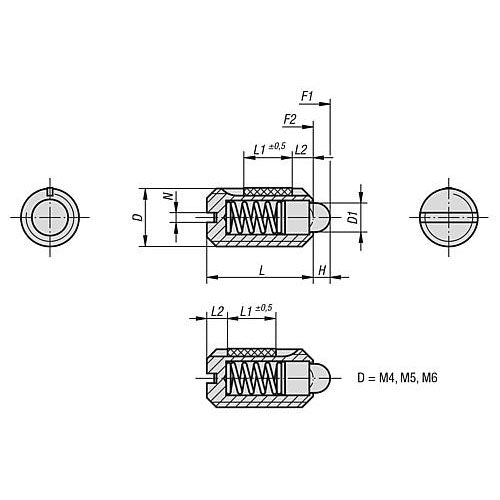

Spring Plungers with thread lock, pin style, slotted, stainless steel, heavy end pressure, metric
Material: Body in stainless steel 1.4305; pressure pin in stainless steel 1.4034; spring in stainless steel 1.4310 LONG-LOK thread system in nylon Type: Body natural finish, pressure pin hardened L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 3.05
D: M16
D1: 8.5
Tightening Torque Approx. Nm: 3.99
Spring Strength: Intensified
Spring Force Initial Pressure F1 Approx. N: 60
Spring Force Final Pressure F2 Approx. N: 110
H: 4.5
L: 24
L1: 14
N: 2.5
