KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5 Hot on Sale

Original price was: $8.96.Current price is: $3.58.

SKU: US-8765622550733 Categories: , Tag:

Description

KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, inch

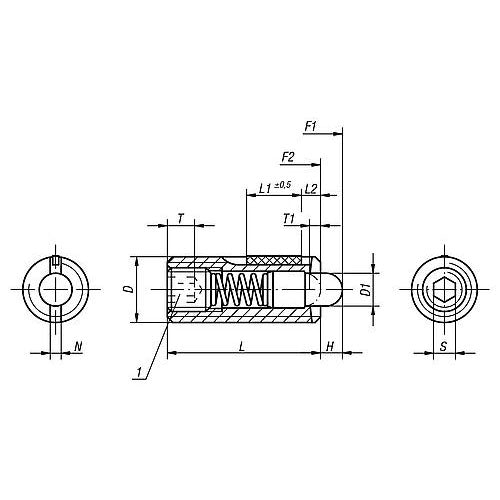

Material: Type: Bright. Part Number Example: K0330.A6 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 0.08
D: 10-32
D1: 2.4
Tightening Torque Approx. Nm: 0.12
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 5
Spring Force Final Pressure F2 Approx. N: 17
H: 2.3
L: 18
L1: 7
N: 0.8
S: 1/16
T: 2
T1: 0.8
