Sale!

KIPP K0330.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5 Supply

Original price was: $11.57.Current price is: $4.63.

SKU: US-8765622976717 Categories: , Tag:

Description

KIPP K0330.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, inch

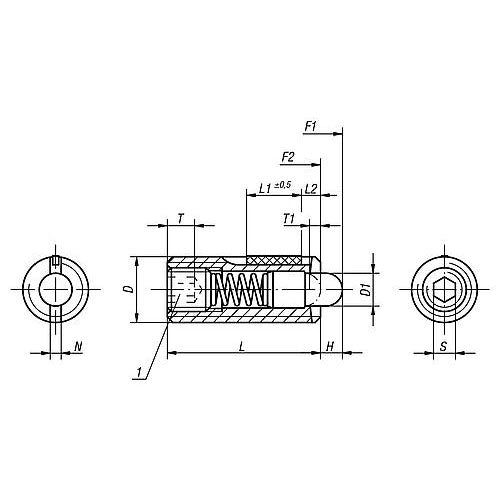

Material: Type: Bright. Part Number Example: K0330.A6 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 0.6
D: 3/8-16
D1: 4
Tightening Torque Approx. Nm: 1.3
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 8
Spring Force Final Pressure F2 Approx. N: 31
H: 3
L: 22
L1: 9
N: 1.6
S: 1/8
T: 3.5
T1: 1.4
