KIPP K0330.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5 Hot on Sale

Original price was: $16.70.Current price is: $6.68.

SKU: US-8765623107789 Categories: , Tag:

Description

KIPP K0330.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, inch

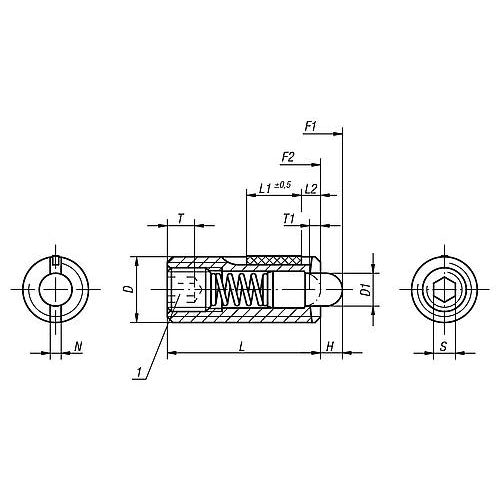

Material: Type: Bright. Part Number Example: K0330.A6 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 1.3
D: 1/2-13
D1: 6
Tightening Torque Approx. Nm: 2
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 10
Spring Force Final Pressure F2 Approx. N: 47
H: 4
L: 28
L1: 10
N: 2
S: 5/32
T: 5
T1: 2
