KIPP K0330.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5 Online Hot Sale

Original price was: $26.29.Current price is: $10.52.

SKU: US-8765623304397 Categories: , Tag:

Description

KIPP K0330.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, inch

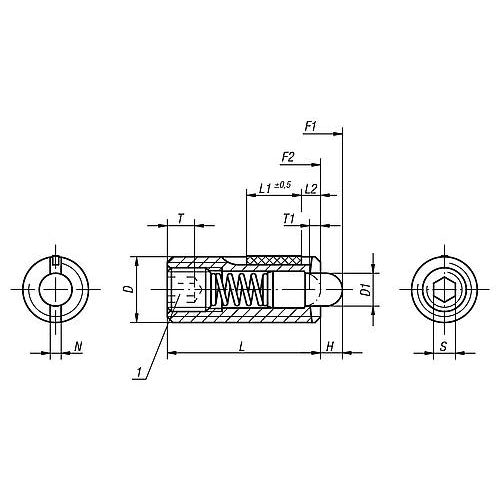

Material: Type: Bright. Part Number Example: K0330.A6 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 3
D: 5/8-11
D1: 7.5
Tightening Torque Approx. Nm: 3.9
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 45
Spring Force Final Pressure F2 Approx. N: 100
H: 5
L: 32
L1: 14
N: 2.5
S: 3/16
T: 6
T1: 2.5
