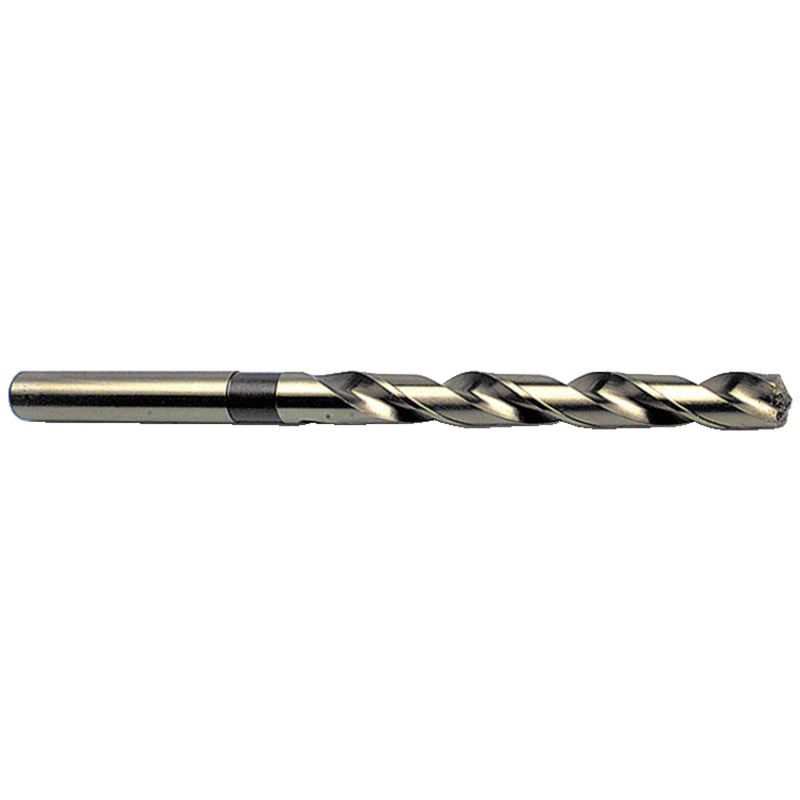

Morse Cutting Tools MT1810627 1-13/64; Taper Length; High Speed Steel; Black Oxide; Made In U.S.A. Series/List #1314
Short Description
Morse Cutting Tools 10627 1-13/64; Taper Length; High Speed Steel; Black Oxide; Made In U.S.A. Series/List #1314
Full Description
Drill Bit Size / Cutting Diameter (DC)
1-13/64″
Flute Length
7-1/2″
Drill Bit Size / Cutting Diameter (DC) – Inch
1-13/64″
Flute Type
Regular Spiral
Decimal Equivalent
1.2031″
Measurement Type
Fractional
Angle
118 Degrees
Overall Length (OAL)
12-1/8″
Coating
Black Oxide
Point Shape
Standard
Coolant Supply Property (CSP)
External
Shank Type
Straight
Cutting Depth
7-1/2″
Tool Type
Taper Length
Shank Size (SS)
1-13/64″
Series/List #
1314
Cutting Edge Material
HSS
Taper Length Drills • Taper length drills have approximately the same flute lengths and overall lengths as taper shank drills, for deeper hole drilling • Shanks are the same diameter as the drill body • Recommended for drilling a wide range of materials
