Sale!

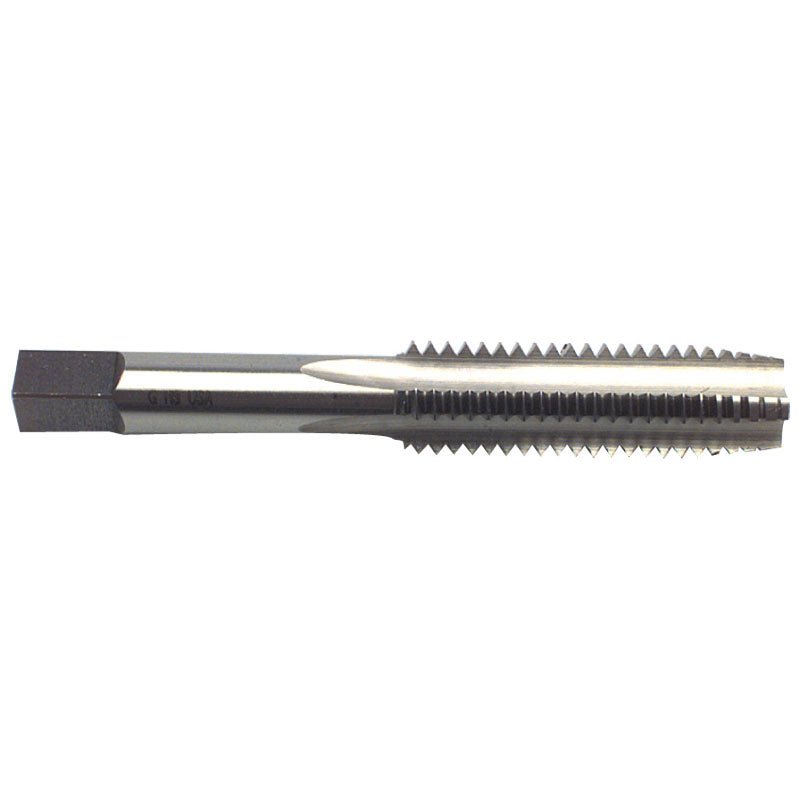

Morse Cutting Tools MT3934303 5/16" NC, 18 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014 Online

Original price was: $7.27.Current price is: $2.91.

SKU: US-6727135002829 Categories: , Tag:

Description

Morse Cutting Tools MT3934303 5/16" NC, 18 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014

Short Description

Morse Cutting Tools 34303 5/16″ NC, 18 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014

Full Description

Thread Diameter Size (TDZ) 5/16″ Chamfer 3 to 5 Threads
Threads per Inch (TPI) 18 Coating Bright
Thread Standard NC Flute Type Straight
Overall Length (OAL) 2-23/32″ End Shape Chamfer
Thread Cutting Part Length (THL) 1-1/8″ Style Plug
Flute Count (NOF) 4 Cutting Direction (HAND) Double Lead
Cutting Edge Material HSS Measurement Type Fractional
Thread Tolerance Class (TCTR) H11 Series/List # 2014
Tool Type General Purpose Tap Thread Size 5/16″ – 18

+.005 Oversize Hand Taps • Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. • +.005 Oversize (H11) taps are mainly used for parts that will be plated or heat treated after tapping. Also used in materials that tend to shrink after tapping.
