Morse Cutting Tools MT3934309 1/2" NC, 13 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014 on Sale

Original price was: $14.24.Current price is: $5.70.

SKU: US-6725870289101 Categories: , Tag:

Description

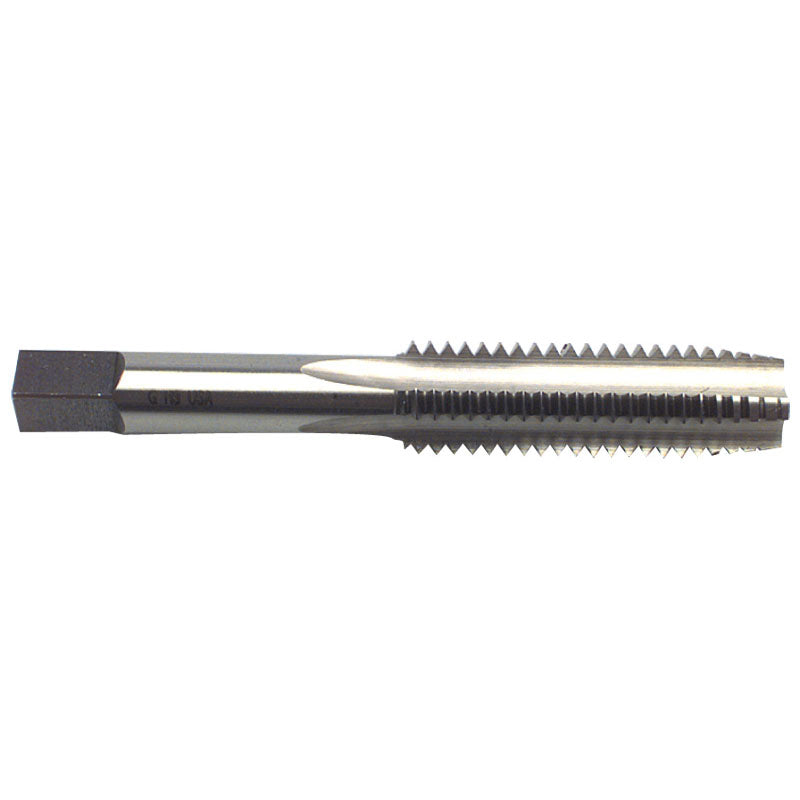

Morse Cutting Tools MT3934309 1/2" NC, 13 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014

Short Description

Morse Cutting Tools 34309 1/2″ NC, 13 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014

Full Description

Thread Diameter Size (TDZ) 1/2″ Chamfer 3 to 5 Threads
Threads per Inch (TPI) 13 Coating Bright
Thread Standard NC Flute Type Straight
Overall Length (OAL) 3-3/8″ End Shape Chamfer
Thread Cutting Part Length (THL) 1-21/32″ Style Plug
Flute Count (NOF) 4 Cutting Direction (HAND) Right Hand
Cutting Edge Material HSS Measurement Type Fractional
Thread Tolerance Class (TCTR) H11 Series/List # 2014
Tool Type General Purpose Tap Thread Size 1/2″ – 13

+.005 Oversize Hand Taps • Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. • +.005 Oversize (H11) taps are mainly used for parts that will be plated or heat treated after tapping. Also used in materials that tend to shrink after tapping.
