Morse Cutting Tools MT5121871 7/8" Dia. 8-Flute, Taper Shank, Spiral Flute, HSS, 10" OAL Chucking Reamer Online Sale

Original price was: $120.54.Current price is: $30.14.

SKU: US-6911181160653 Categories: , Tag:

Description

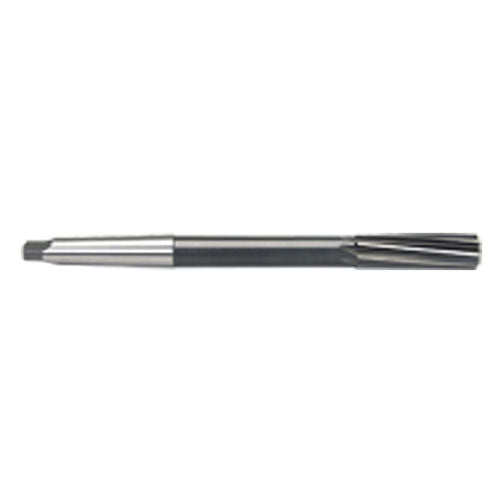

Morse Cutting Tools MT5121871 7/8" Dia. 8-Flute, Taper Shank, Spiral Flute, HSS, 10" OAL Chucking Reamer

Short Description

Morse Cutting Tools 21871 7/8″ Dia. 8-Flute, Taper Shank, Spiral Flute, HSS, 10″ OAL Chucking Reamer

Full Description

Cutting Diameter (DC) 7/8″ Shank Type Taper
Usable Length (LU) 2-5/8″ Flute Type Spiral
Connection Diameter Machine Side (DCONMS) MT2 Length Chip Flute (LCF) 2-5/8″
Flute Count (NOF) 8 Measurement Type Inch
Overall Length (OAL) 10″ Series/List # 1654
Cutting Direction (HAND) Right Hand Decimal Equivalent 0.8750″
Cutting Edge Material HSS

Taper Shank -†Right Hand Helix Chucking Reamer† • Right Hand Helix pulls chips out of the hole in blind hole and through hole applications, bridges interruptions and provides better finish and sizing than straight flute reamers. • 45 Degree chamfer for reaming most materials • Diameter Tolerance: • Up to .5000 — +.0002/-0 • .5005 to .6250 — +.0003/-0 • .6255 to 1.5000 — +.0001/+.0004
