Sale!

Morse Cutting Tools MT5122336 1-1/16" Dia. 8-Flute, Taper Shank, Straight Flute, HSS, 10-1/2" OAL Chucking Reamer Series/List #1656 Sale

Original price was: $181.44.Current price is: $45.36.

SKU: US-6725747474637 Categories: , Tag:

Description

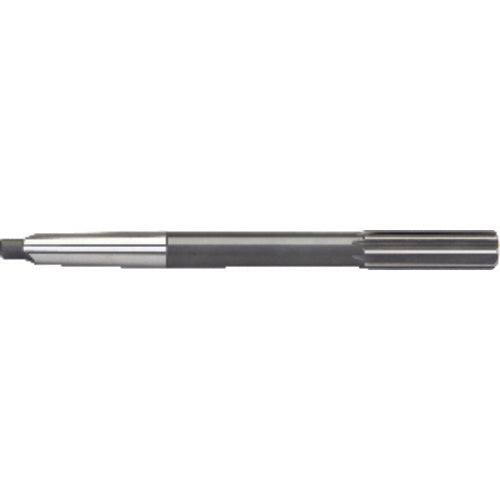

Morse Cutting Tools MT5122336 1-1/16" Dia. 8-Flute, Taper Shank, Straight Flute, HSS, 10-1/2" OAL Chucking Reamer Series/List #1656

Short Description

Morse Cutting Tools 22336 1-1/16″ Dia. 8-Flute, Taper Shank, Straight Flute, HSS, 10-1/2″ OAL Chucking Reamer Series/List #1656

Full Description

Cutting Diameter (DC) 1-1/16″ Cutting Edge Material HSS
Usable Length (LU) 2-3/4″ Shank Type Taper
Connection Diameter Machine Side (DCONMS) MT3 Flute Type Straight
Flute Count (NOF) 8 Length Chip Flute (LCF) 2-3/4″
Overall Length (OAL) 10-1/2″ Measurement Type Inch
Cutting Direction (HAND) Right Hand Series/List # 1656
Flute Helix Angle (FHA) 0 Degrees Decimal Equivalent 1.0625″

Taper†Shank Chucking Reamer† • 45 Degree chamfer for reaming most materials • Diameter Tolerance: • Up to .5000 — +.0002/-0 • .5005 to .6250 — +.0003/-0 • .6255 to 1.5000 — +.0001/+.0004
