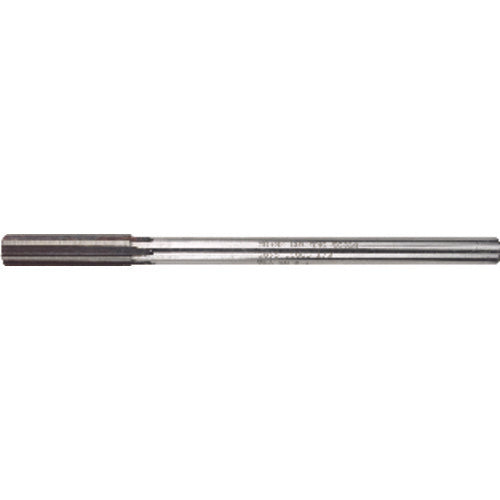

Morse Cutting Tools MT5222389 20.5 mm Dia. 8-Flute, Round Shank, Straight Flute, HSS, 9" OAL Chucking Reamer Series/List #1655M Online now

Original price was: $91.77.Current price is: $27.53.

SKU: US-6726444351693 Categories: , Tag:

Description

Morse Cutting Tools MT5222389 20.5 mm Dia. 8-Flute, Round Shank, Straight Flute, HSS, 9" OAL Chucking Reamer Series/List #1655M

Short Description

Morse Cutting Tools 22389 20.5 mm Dia. 8-Flute, Round Shank, Straight Flute, HSS, 9″ OAL Chucking Reamer Series/List #1655M

Full Description

Cutting Diameter (DC) 20.5 mm Cutting Edge Material HSS
Usable Length (LU) 2-1/2″ Shank Type Round
Connection Diameter Machine Side (DCONMS) 0.6240″ Flute Type Straight
Flute Count (NOF) 8 Length Chip Flute (LCF) 2-1/2″
Overall Length (OAL) 9″ Measurement Type Metric
Cutting Direction (HAND) Right Hand Series/List # 1655
Flute Helix Angle (FHA) 0 Degrees Decimal Equivalent 0.8071″

Straight Shank Chucking Reamer† • 45 Degree chamfer for reaming most materials • Diameter Tolerance: • Up to .5000 — +.0002/-0 • .5005 to .6250 — +.0003/-0 • .6255 to 1.5000 — +.0001/+.0004
