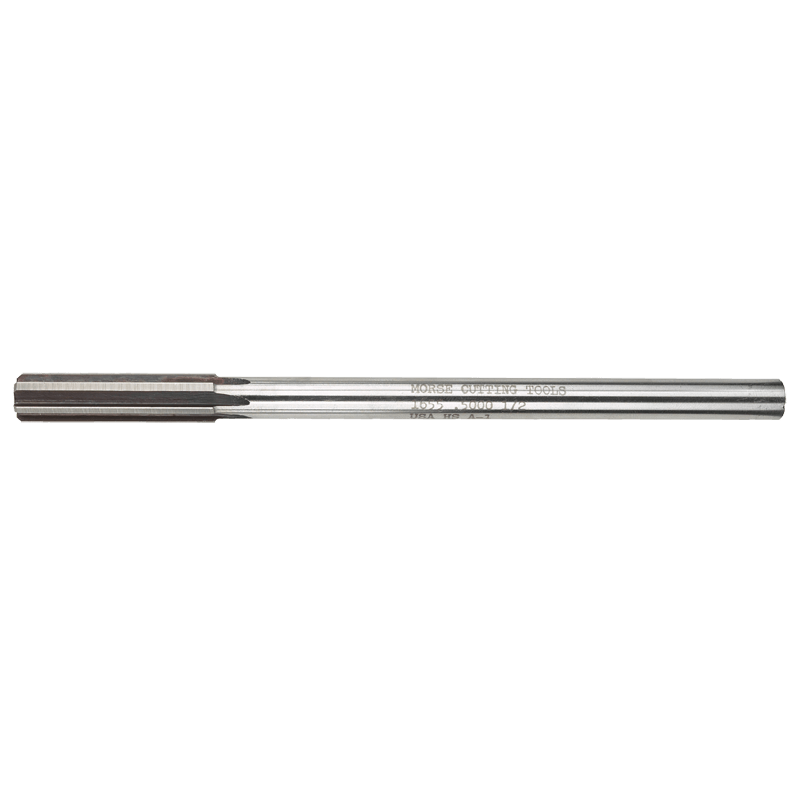

Morse Cutting Tools MT5322403 7/64" Dia. 4-Flute, Round Shank, Straight Flute, HSSCo, 3-1/2" OAL Chucking Reamer Series/List #2655 Online now

Original price was: $21.16.Current price is: $8.46.

SKU: US-6727542341837 Categories: , Tag:

Description

Morse Cutting Tools MT5322403 7/64" Dia. 4-Flute, Round Shank, Straight Flute, HSSCo, 3-1/2" OAL Chucking Reamer Series/List #2655

Short Description

Morse Cutting Tools 22403 7/64″ Dia. 4-Flute, Round Shank, Straight Flute, HSSCo, 3-1/2″ OAL Chucking Reamer Series/List #2655

Full Description

Cutting Diameter (DC) 7/64″ Cutting Edge Material HSSCo
Usable Length (LU) 7/8″ Shank Type Round
Connection Diameter Machine Side (DCONMS) 0.1030″ Flute Type Straight
Flute Count (NOF) 4 Length Chip Flute (LCF) 7/8″
Overall Length (OAL) 3-1/2″ Measurement Type Inch
Cutting Direction (HAND) Right Hand Series/List # 2655
Flute Helix Angle (FHA) 0 Degrees Decimal Equivalent 0.1094″

Straight Shank Chucking Reamer – Cobalt† • M42 8% Cobalt steel offers increased hardness, toughness, wear resistance and heat resistance. • 45 Degree chamfer for reaming most materials • Recommended for reaming high alloy steels, titanium, inconel, stainless steel and other difficult-to-ream materials. • Longer tool life in production applications • Diameter Tolerance: • Up to .5000 — +.0002/-0 • .5005 to .6250 — +.0003/-0 • .6255 to 1.5000 — +.0001/+.0004
