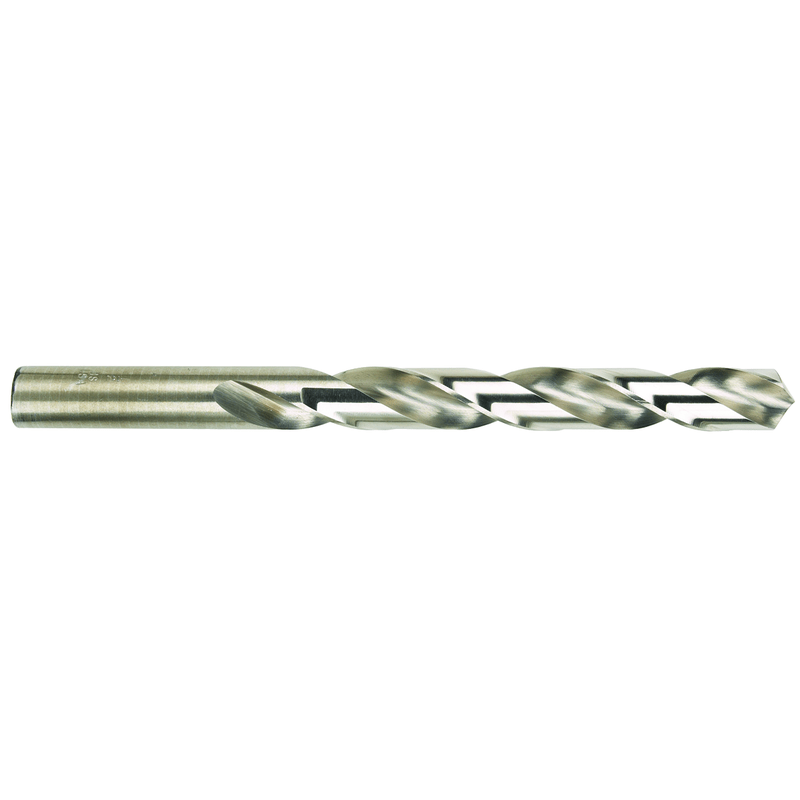

Morse Cutting Tools MT5613009 0.75mm; Jobber Length DIN 338; High Speed Steel; Black Oxide; Made In U.S.A. Series/List #1333
Short Description
Morse Cutting Tools 13009 0.75mm; Jobber Length DIN 338; High Speed Steel; Black Oxide; Made In U.S.A. Series/List #1333
Full Description
Drill Bit Size / Cutting Diameter (DC)
0.75 mm
Cutting Depth
9 mm
Decimal Equivalent
0.0295
Flute Length
9 mm
Drill Bit Size / Cutting Diameter (DC) – Metric
0.75 mm
Point Shape
Standard
Measurement Type
Metric
Shank Type
Straight
Angle
118 Degrees
Connection Diameter Machine Side (DCONMS)
0.75 mm
Cutting Edge Material
HSS
Shape
General Purpose
Flute Type
Standard
Tool Radius
118 Degrees
Coating
Black Oxide
Series/List #
1333
Coolant Supply Property (CSP)
External
Overall Length (OAL)
1-3/8″
Jobber Length Drill – General Purpose • Designed for drilling a wide variety of materials • Black Oxide Surface Treatment increased wear resistance, reduces galling and chip welding, improves chip flow and increase drill lubricant retention.
