The powerful NAAMS Base Robot Riser ARR710 boasts precise measurements of A±3: 1300mm, B: 1198.4mm, and C: 730mm, with a sturdy M24 X 2 hole detail and a mounting system of 6. This must-have piece weighs a stunning 3391 kg, making it a top choice for any industrial application.
Full Description

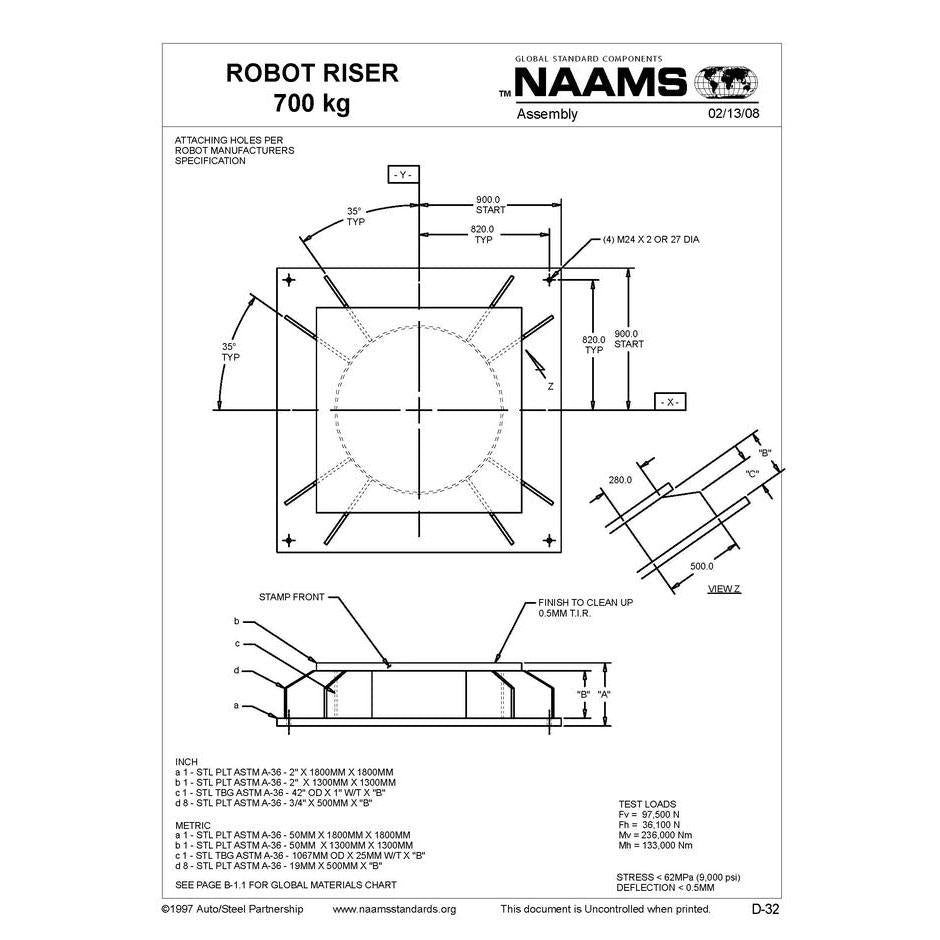

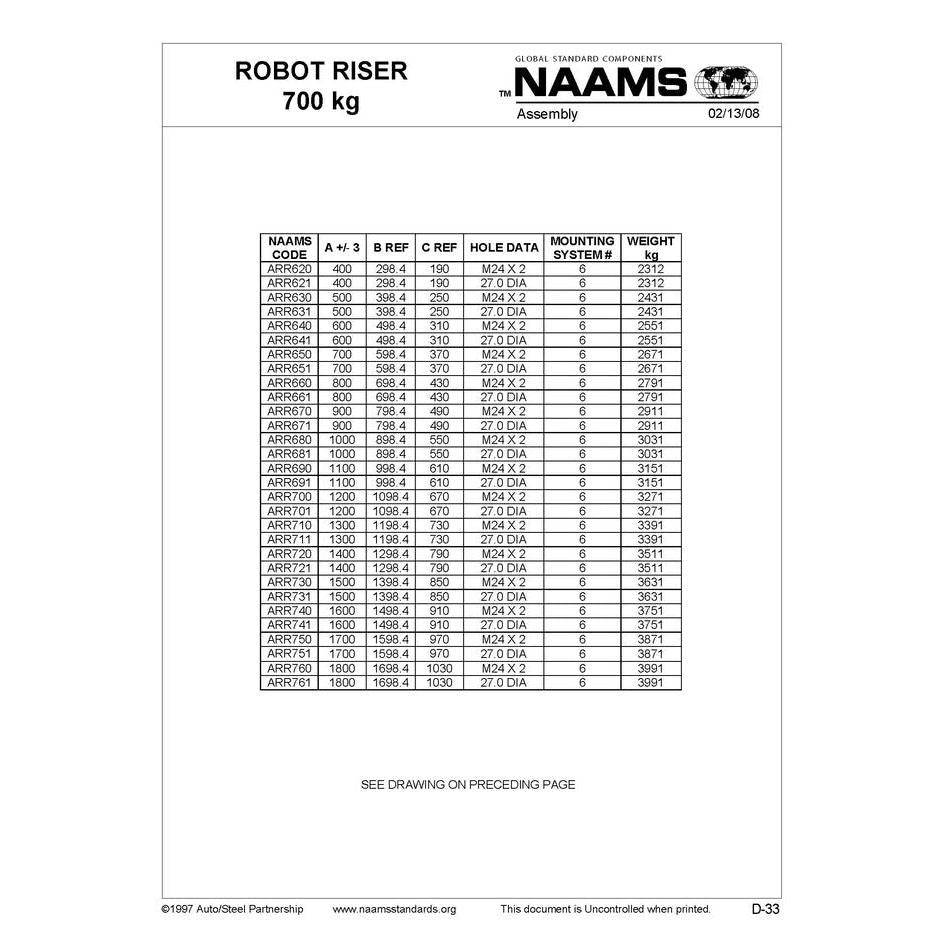

FREER NAAMS BASE ROBOT RISER ARR710
A±3: 1300mm
B: 1198.4mm
C: 730mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 3391
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code: ABL343 ABL643 ABL843 ABL340 ABL341 ABL440 ABL441
