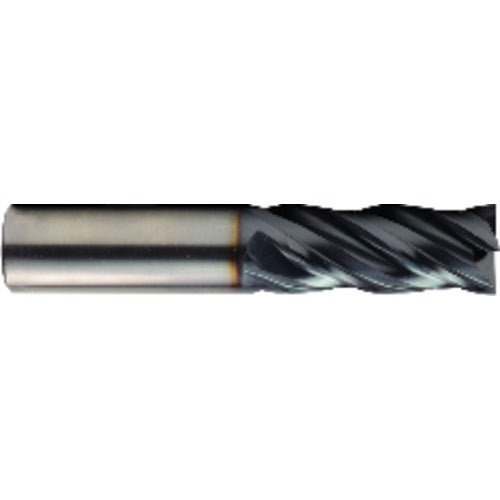

OSG USA, Inc. TP45VG4411000 1 Dia. ?1 Shank ?1-1/2 DOC ?4 OAL, Carbide, TiAlN, 4 Flute, Weldon, Square, Solid End Mill
Short Description
OSG USA, Inc. TP45VG4411000 1 Dia. נ1 Shank נ1-1/2 DOC נ4 OAL, Carbide, TiAlN, 4 Flute, Weldon, Square, Solid End Mill
Full Description
Cutting Diameter (DC)
1″
End Shape
Square
Connection Diameter Machine Side (DCONMS)
1″
Usable Length (LU)
1-1/2″
Depth of Cut Maximum (APMX)
1-1/2″
Tool Type
Single-End|High Performance
Overall Length (OAL)
4″
Style
Square
Cutting Edge Material
Carbide
Measurement Type
Inch
Coating
AlTiN
Series/List #
VG441
Flute Count (NOF)
4
Package Height
1.35000
Shank Type
Weldon
Remarks
• High Performance Carbide• Center Cutting• TiALN Coating• Square End• 4 Flute• Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels, Stainless Steels, Hardened Steels up to 45 HrC and High Heat Alloys
