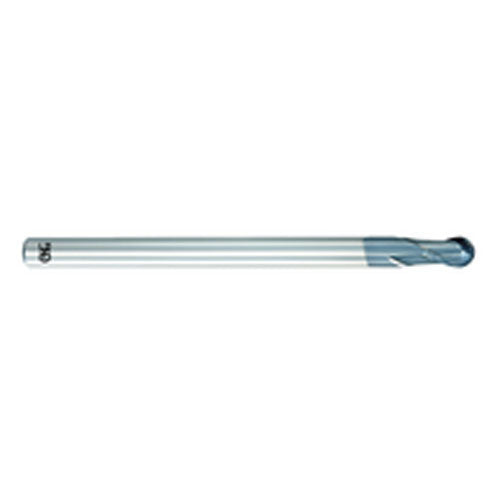

OSG USA, Inc. TP4836100311 3/32 Dia. ?1/4 Shank ?3/32 DOC ?2-1/2 OAL, Carbide WXL, 2 Flute, Round, Ballnose End Mill
Short Description
OSG USA, Inc. TP4836100311 3/32 Dia. נ1/4 Shank נ3/32 DOC נ2-1/2 OAL, Carbide WXL, 2 Flute, Round, Ballnose End Mill
Full Description
Cutting Diameter (DC)
3/32″
Corner Radius (RE)
0.046″
Connection Diameter Machine Side (DCONMS)
1/4″
Tool Type
High Performance
Depth of Cut Maximum (APMX)
3/32″
Length Group
Standard
Overall Length (OAL)
2-1/2″
End Shape
Ball Nose
Cutting Edge Material
Carbide
Style
Ball
Coating
WXL
Decimal Equivalent
0.0938″
Flute Count (NOF)
2
Measurement Type
Inch
Shank Type
Round
Series/List #
3610
Usable Length (LU)
3/32″
Remarks
• EXOCARB WXL Coated Carbide End Mills• 2 Flute Ball Nose• High Efficiency Milling in a wide range of materials including non-ferrous, mild steels, and hardened steels up to 50 HRC• The WXL coating was developed to improve performance in a wide range of materials, but also offer consistent milling in both wet and dry applications• The WXL coated end mills not only provide an new improved coating, but new enhanced geometries along with a better substrate, allowing the WXL coating higher adhesion properties and cutting performance• Applications: For Profile Milling in non ferrous and hardened steels• Benefits: WXL Coated, Enhanced Geometry and Substrate
